Solar Pump Monitoring Device
Salient Features:
- User friendly, No installation required from PC side
- All data shown as a numerical values & historical graph in daily, monthly and yearly format
- Report generated in excel & pdf format to be download & email in just one click
- Automatically get site location when device is connected
- View current status of pump controller i.e. Run/stop status ,fault status with code
- Data retrieve interval time settable via RMS
- Edit parameters of pump controller by RMS for easy troubleshooting
- Admin Tool for Self-management of all Pumps/ OEM’s/ Customers
- Pop up Facility when the new device connects for the first time
Applications:
- Farms where solar pumps are installed
Solar Pump Remote Monitoring Unit
Description:
The highly interactive Remote Monitoring System (RMS) combines flexibility and convenience to give consumers ultimate control over the power distribution process. Now you can remotely monitor and control your solar pump located hundreds of kilometers away with just your smartphone or tablet. Using GPRS technology, we make it easier for you to ensure the optimal performance of those pumps.
Our RMS employs a simple-to-read Graphic User Interface that enables real-time data capturing and co-relating so that you are able to visualize the operational infrastructure on-the-go. It also speeds up the fault identification, preventive maintenance and rectification processes, minimizing unwanted costs and pilferages. There is the added ability to program the switch between the Electric Board’s supply and Solar to match individual needs and power supply situations.
Here are some of the other key benefits:
- Real-time Pump data and ON/OFF mechanism available for farmers using mobile phone
- Real-time data for monitoring and energy saving measurements for Government and Regulatory authorities
- Real time data like Water flow, Water output/day, Solar DC Voltage, DC ampere, Instantaneous Power, Energy (Kwh), AC output Voltage, Total UP time
- Real time Alarm & faults monitor
System Consisting of:
- AC drive
- GSM based control card ( data monitoring)
- User friendly Remote monitoring software
System requirements (Optional):
- Service Provider (GSM / GPRS)
- Data Space management on server
- Data packages for GPRS
Specifications:
| Parameters | Specifications |
|---|---|
| Supply Voltage | DC 24V/500mA |
| Reverse Polarity Protection | Yes |
| MCU | Atmel ARM Cortex M0+ 32 bit |
| GSM /GPRS | Quad Band 850/900/1800/1900 MHz GPRS Mobile Station Class B Push type Mega SIM slot |
| Storage | Micro SD card (SDHC)(Optional) Support up to 4 GB for 5 year data logging |
| USB Interface | Inbuilt Micro USB 2.0 To read power data & other parameters on a laptop |
| RS-485 Interface | Support Standard Modbus protocol To read/write parameters of pump controller |
| Display | LCD 16X2 Character Alphanumeric To Display Power & other parameters |
| Digital/Analog input | 2 digital input (programmable) 1 digital output (On/Off pump Remotely) 2 Analog input(4-20mA for Flow Sensor) |
| LED indication | Power On/Off Status Fault Connectivity |
| Ambient Temperature | 0°C to 60°C |
| Display Parameters | Flow In LPM, Water output per Day, Energy, Generated Power, Solar PV voltage, Current, Frequency, Motor current & voltage, Error code, GSM signal Strength, Total UP time |
Remote Monitoring Software (RMS):
- User friendly, No any installation required from PC side
- All data show as a numerical values & historical graph in daily , monthly & yearly format
- Report generated in excel & pdf format to be download & email in just one click
- Automatically get site location when device is connected
- View current status of pump controller i.e. Run/stop status ,fault status with code
- Data retrieve interval time settable via RMS
- Edit parameters of pump controller by RMS for easy troubleshooting
- Admin Tool for Self-management of all Pumps/ OEM’s/ Customers
- Pop up Facility when the new device connected at first time

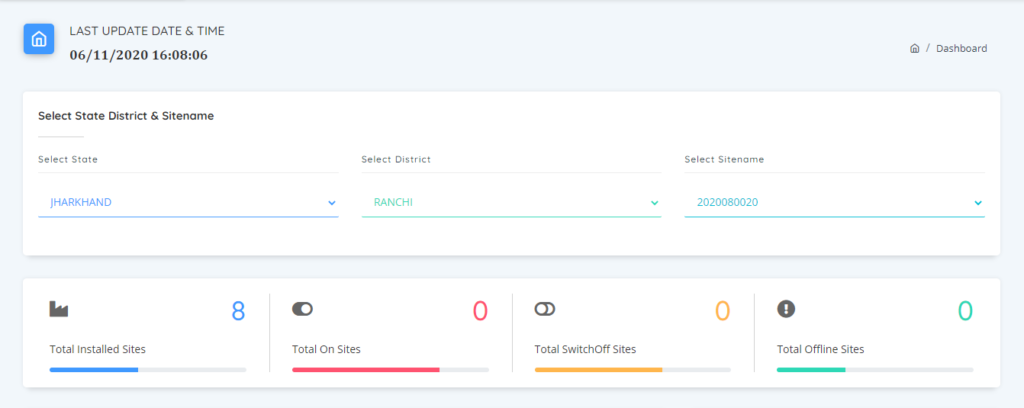

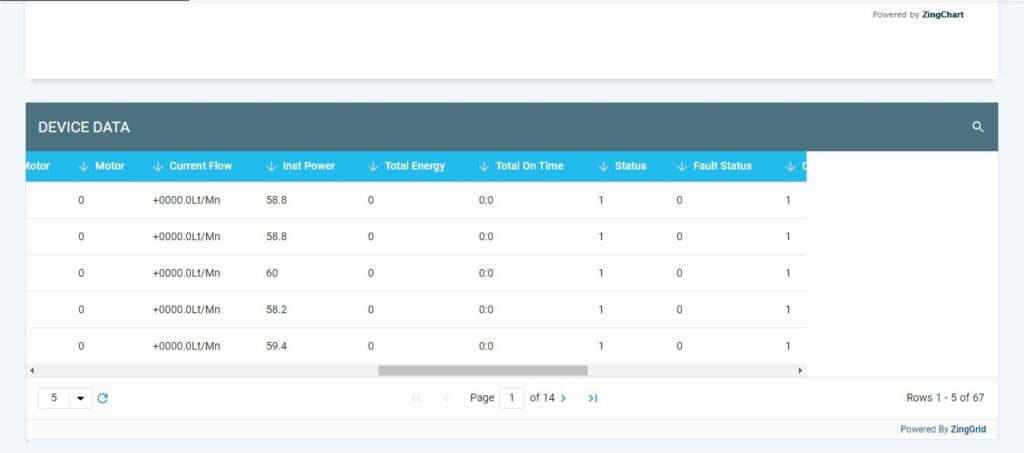

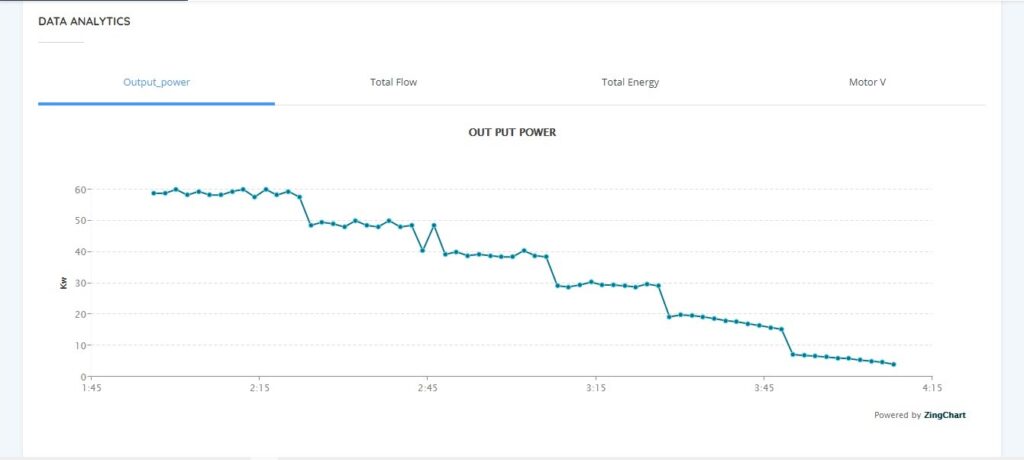

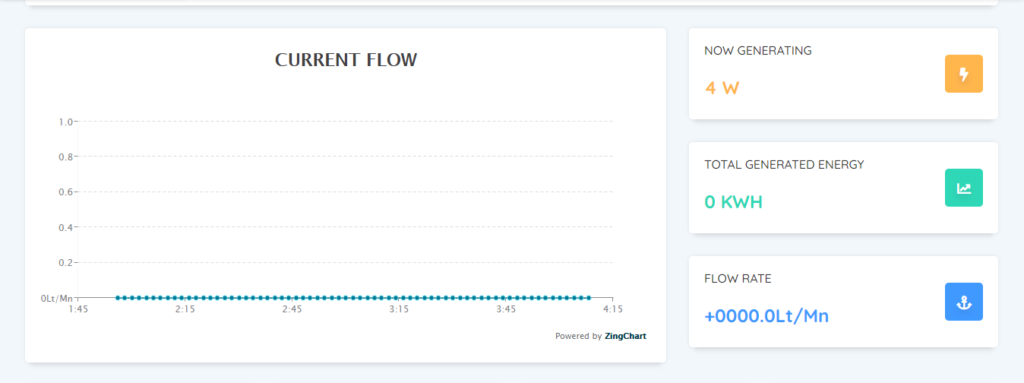

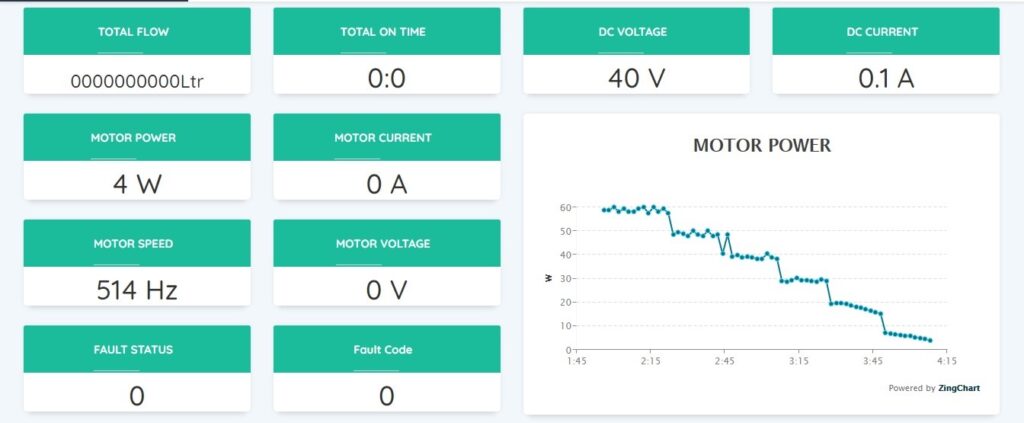

Site view screen shots:
