LED Façade Lights
Click on the picture to zoom it.
Salient Features:
- High lumens LEDs used
- Up to 50% Energy Savings compared to conventional lighting
- Proudly made in India product
- Premium Finishing
- Polycarbonate lens available for better light distribution
- Highest quality standards
- LM80 certified
- BIS certified drivers
- Long life of over 50,000 hours
Applications:
- Facade lighting
- Temples, Hotels, Hospitals, Government buildings
- Public Places e.g. Railway or Bus stations
- Gardens and parks
- Landscape lighting
- Architectural lighting

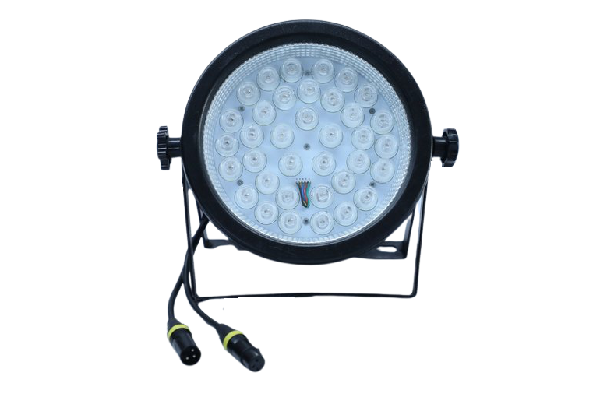

FAÇADE PAR LIGHT (RGB)
Click on the picture to zoom it.
Description:
The lights in this series consists lens in the design of the flood lights. Which actually gives more refined and focused light throw.
This gives all the shades using RGB LED technology.
Available beam angles are 35°, 45°, 60°, 90°, 120°.
Specifications:
| MODEL | RUFPARL50W | RUFPARL100W |
|---|---|---|
| Input Power(W) | 50W (+/- 5%) | 100W (+/- 5%) |
| Input Voltage (Vac) | 230 Vac | 230 Vac |
| Input Voltage Range(Vac) | 100-300 Vac | 100-300 Vac |
| Rated Frequency (Hz) | 50Hz | 50Hz |
| Power Factor | >=0.9 | >=0.9 |
| LED Light Source | SMD | SMD |
| LED Lifespan | >=50,000 Hours | >=50,000 Hours |
| LED light source efficacy (lm/W) | >135 lm/W | >135 lm/W |
| Colour Temperature | 3000k/ 4000k/ 6500k | 3000k/ 4000k/ 6500k |
| Shape | As per image | As per image |
| Luminous Efficacy (lm/w) | NA | NA |
| Luminous Flux(lm) | NA | NA |
| CRI | >80 | >80 |
| Beam Angle | 35 to 120 Degree | 35 to 120 Degree |
| Lens Availability | Polycarbonate | Polycarbonate |
| Body Material | Aluminum | Aluminum |
| Front Cover | Toughened Glass | Toughened Glass |
| Ingress Protection | IP65 | IP65 |
| Operating Temperature | 0 to 55 Degree | 0 to 55 Degree |
| Size | ||
| Certification | LM80 | LM80 |
| Remarks | ||
| MRP |
Shades available: All colors.

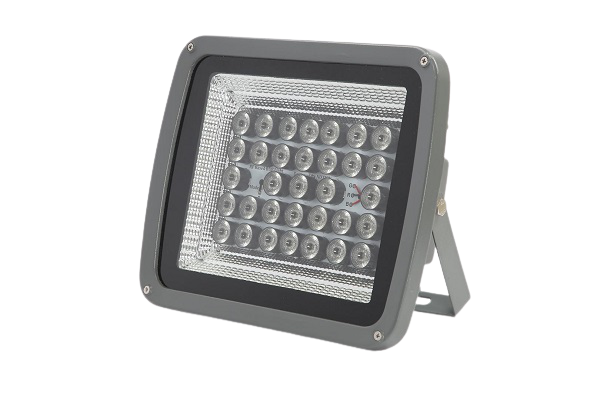

FAÇADE FLOOD LIGHT (RGB)
Click on the picture to zoom it.
Description:
The lights in this series consists lens in the design of the flood lights. Which actually gives more refined and focused light throw.
This gives all the shades using RGB LED technology.
Available beam angles are 35°, 45°, 60°, 90°, 120°.
Specifications:
| MODEL | RUFACFL50W | RUFACFL100W | RUFACFL200W | RUFACFL300W |
|---|---|---|---|---|
| Input Power(W) | 50W (+/- 5%) | 100W (+/- 5%) | 200W (+/- 5%) | 300W (+/- 5%) |
| Input Voltage (Vac) | 230 Vac | 230 Vac | 230 Vac | 230 Vac |
| Input Voltage Range(Vac) | 100-300 Vac | 100-300 Vac | 100-300 Vac | 100-300 Vac |
| Rated Frequency (Hz) | 50Hz | 50Hz | 50Hz | 50Hz |
| Power Factor | >=0.9 | >=0.9 | >=0.9 | >=0.9 |
| LED Light Source | SMD | SMD | SMD | SMD |
| LED Lifespan | >=50,000 Hours | >=50,000 Hours | >=50,000 Hours | >=50,000 Hours |
| LED light source efficacy (lm/W) | >135 lm/W | >135 lm/W | >135 lm/W | >135 lm/W |
| Colour Temperature | 3000k/ 4000k/ 6500k | 3000k/ 4000k/ 6500k | 3000k/ 4000k/ 6500k | 3000k/ 4000k/ 6500k |
| Shape | As per image | As per image | As per image | As per image |
| Luminous Efficacy (lm/w) | NA | NA | NA | NA |
| Luminous Flux(lm) | NA | NA | NA | NA |
| CRI | >80 | >80 | >80 | >80 |
| Beam Angle | 35 to 120 Degree | 35 to 120 Degree | 35 to 120 Degree | 35 to 120 Degree |
| Lens Availability | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate |
| Body Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Front Cover | Toughened Glass | Toughened Glass | Toughened Glass | Toughened Glass |
| Ingress Protection | IP65 | IP65 | IP65 | IP65 |
| Operating Temperature | 0 to 55 Degree | 0 to 55 Degree | 0 to 55 Degree | 0 to 55 Degree |
| Size | ||||
| Certification | LM80 | LM80 | LM80 | LM80 |
| Remarks | ||||
| MRP |
Shades available: All colors.
FAÇADE WALL WASHER LIGHT (RGB)
Click on the picture to zoom it.
Description:
The lights in this series consists lens in the design of the flood lights. Which actually gives more refined and focused light throw.
This gives all the shades using RGB LED technology.
Available beam angles are 35°, 45°, 60°, 90°, 120°.
Specifications:
| MODEL | RUFACWWL18W | RUFACWWL30W | RUFACWWL45W | RUFACWWL60W | RUFACWWL90W |
|---|---|---|---|---|---|
| Input Power(W) | 18W (+/- 5%) | 30W (+/- 5%) | 45W (+/- 5%) | 60W (+/- 5%) | 90W (+/- 5%) |
| Input Voltage (Vac) | 230 Vac | 230 Vac | 230 Vac | 230 Vac | 230 Vac |
| Input Voltage Range(Vac) | 100-300 Vac | 100-300 Vac | 100-300 Vac | 100-300 Vac | 100-300 Vac |
| Rated Frequency (Hz) | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz |
| Power Factor | >=0.9 | >=0.9 | >=0.9 | >=0.9 | >=0.9 |
| LED Light Source | SMD | SMD | SMD | SMD | SMD |
| LED Lifespan | >=50,000 Hours | >=50,000 Hours | >=50,000 Hours | >=50,000 Hours | >=50,000 Hours |
| LED light source efficacy (lm/W) | >135 lm/W | >135 lm/W | >135 lm/W | >135 lm/W | >135 lm/W |
| Colour Temperature | 3000k/ 4000k/ 6500k | 3000k/ 4000k/ 6500k | 3000k/ 4000k/ 6500k | 3000k/ 4000k/ 6500k | 3000k/ 4000k/ 6500k |
| Shape | As per image | As per image | As per image | As per image | As per image |
| Luminous Efficacy (lm/w) | NA | NA | NA | NA | NA |
| Luminous Flux(lm) | NA | NA | NA | NA | NA |
| CRI | >80 | >80 | >80 | >80 | >80 |
| Beam Angle | 35 to 120 Degree | 35 to 120 Degree | 35 to 120 Degree | 35 to 120 Degree | 35 to 120 Degree |
| Lens Availability | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate |
| Body Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Front Cover | Toughened Glass | Toughened Glass | Toughened Glass | Toughened Glass | Toughened Glass |
| Ingress Protection | IP65 | IP65 | IP65 | IP65 | IP65 |
| Operating Temperature | 0 to 55 Degree | 0 to 55 Degree | 0 to 55 Degree | 0 to 55 Degree | 0 to 55 Degree |
| Size | |||||
| Certification | LM80 | LM80 | LM80 | LM80 | LM80 |
| Remarks | |||||
| MRP |
Shades available: All colors.
