LED Wall and Bulkhead Lights
Click on the picture to zoom it.
Years Warranty*
0
over voltage protection*
230
V
auto cut off*
300
V
hrs Life Span*
1
k
lm/W Light Output*
>
0
Salient Features:
- High lumens LEDs used
- Up to 50% Energy Savings compared to conventional lighting
- Proudly made in India product
- Premium Finishing
- Polycarbonate lens available for better light distribution
- Highest quality standards
- LM80 certified
- BIS certified drivers
- Long life of over 50,000 hours
Applications:
- Outdoor walls
- Passages and Corridors in complexes and buildings
- Public Places e.g. Railway or Bus stations
- Gardens and parks
- Landscape lighting
- Parking area
- Architectural lighting

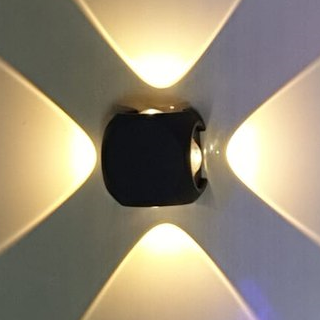

LED Wall lights (Waterproof)
Click on the picture to zoom it.
Description:
These lights are used in landscape lighting, outdoor walls, parks and gardens, passages.
Specifications:
| MODEL | RUWL5W-CW/NW/WW | RUWL10W-CW/NW/WW | RUWL15W-CW/NW/WW |
|---|---|---|---|
| Input Power(W) | 5W (+/- 5%) | 10W (+/- 5%) | 15W (+/- 5%) |
| Input Voltage (Vac) | 230 Vac | 230 Vac | 230 Vac |
| Input Voltage Range(Vac) | 100-300 Vac | 100-300 Vac | 100-300 Vac |
| Rated Frequency (Hz) | 50Hz | 50Hz | 50Hz |
| Power Factor | >=0.9 | >=0.9 | >=0.9 |
| LED Light Source | SMD | SMD | SMD |
| LED Lifespan | >=50,000 Hours | >=50,000 Hours | >=50,000 Hours |
| LED light source efficacy (lm/W) | >135 lm/W | >135 lm/W | >135 lm/W |
| Colour Temperature | 3000k/ 4000k/ 6500k | 3000k/ 4000k/ 6500k | 3000k/ 4000k/ 6500k |
| Shape | As per image | As per image | As per image |
| Luminous Efficacy (lm/w) | >90 | >90 | >90 |
| Luminous Flux(lm) | >450 | >900 | >1350 |
| CRI | >80 | >80 | >80 |
| Beam Angle | 120 Degree | 120 Degree | 120 Degree |
| Lens Availability | NA | NA | NA |
| Body Material | Plastic/Aluminum | Plastic/Aluminum | Plastic/Aluminum |
| Front Cover | Polycarbonate | Polycarbonate | Polycarbonate |
| Ingress Protection | IP65 | IP65 | IP65 |
| Operating Temperature | 0 to 55 Degree | 0 to 55 Degree | 0 to 55 Degree |
| Size | |||
| Certification | LM80 | LM80 | LM80 |
| Remarks | |||
| MRP |
Shades available: Cool White, Neutral White, Warm White, Red, Green, Blue, Amber, Pink

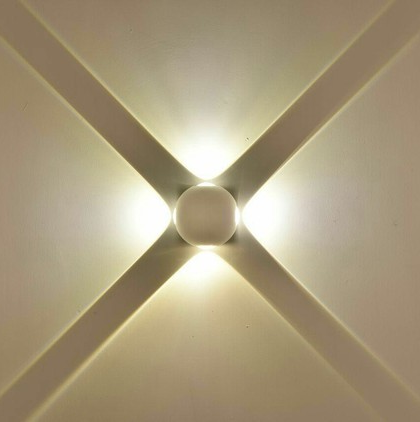

LED Bulk Head lights (Waterproof)
Click on the picture to zoom it.
Description:
These lights are used in landscape lighting, outdoor walls, parks and gardens, passages.
Specifications:
| MODEL | RUBLKL5W-CW/NW/WW | RUBLKL10W-CW/NW/WW | RUBLKL15W-CW/NW/WW |
|---|---|---|---|
| Input Power(W) | 5W (+/- 5%) | 10W (+/- 5%) | 15W (+/- 5%) |
| Input Voltage (Vac) | 230 Vac | 230 Vac | 230 Vac |
| Input Voltage Range(Vac) | 100-300 Vac | 100-300 Vac | 100-300 Vac |
| Rated Frequency (Hz) | 50Hz | 50Hz | 50Hz |
| Power Factor | >=0.9 | >=0.9 | >=0.9 |
| LED Light Source | SMD | SMD | SMD |
| LED Lifespan | >=50,000 Hours | >=50,000 Hours | >=50,000 Hours |
| LED light source efficacy (lm/W) | >135 lm/W | >135 lm/W | >135 lm/W |
| Colour Temperature | 3000k/ 4000k/ 6500k | 3000k/ 4000k/ 6500k | 3000k/ 4000k/ 6500k |
| Shape | As per image | As per image | As per image |
| Luminous Efficacy (lm/w) | >90 | >90 | >90 |
| Luminous Flux(lm) | >450 | >900 | >1350 |
| CRI | >80 | >80 | >80 |
| Beam Angle | 120 Degree | 120 Degree | 120 Degree |
| Lens Availability | NA | NA | NA |
| Body Material | Plastic/Aluminum | Plastic/Aluminum | Plastic/Aluminum |
| Front Cover | Polycarbonate | Polycarbonate | Polycarbonate |
| Ingress Protection | IP65 | IP65 | IP65 |
| Operating Temperature | 0 to 55 Degree | 0 to 55 Degree | 0 to 55 Degree |
| Size | |||
| Certification | LM80 | LM80 | LM80 |
| Remarks | |||
| MRP |
Shades available: Cool White, Neutral White, Warm White, Red, Green, Blue, Amber, Pink
